Audient EVO 16

Audient EVO 16

Regular price $474.05
Regular price $499.00 Sale price $474.05
Sale Sold out
Click here to review our shipping policies.

Warranty Information

Three years Parts and Labor on all Audient Ltd products. Warranty covers all defects in material and workmanship. The following are not covered: damage caused by accident, misuse, abuse, product modification or neglect; damage occurring during shipment; damage from failure to follow instructions contained in the instruction manual; damage resulting from unauthorized repairs; or damage caused by improper installation; or damage caused by AC power overvoltage conditions. Audient LTD's liability is limited to the repair or replacement, at our option, of any defective product and shall not include incidental or consequential damages. Audient LTD reserves the right to replace a discontinued model with a comparable model. Any replacement units or parts may be new or rebuilt.

US Delivery Only

View full details

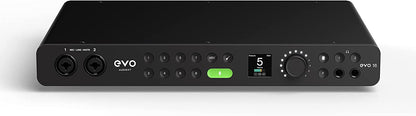

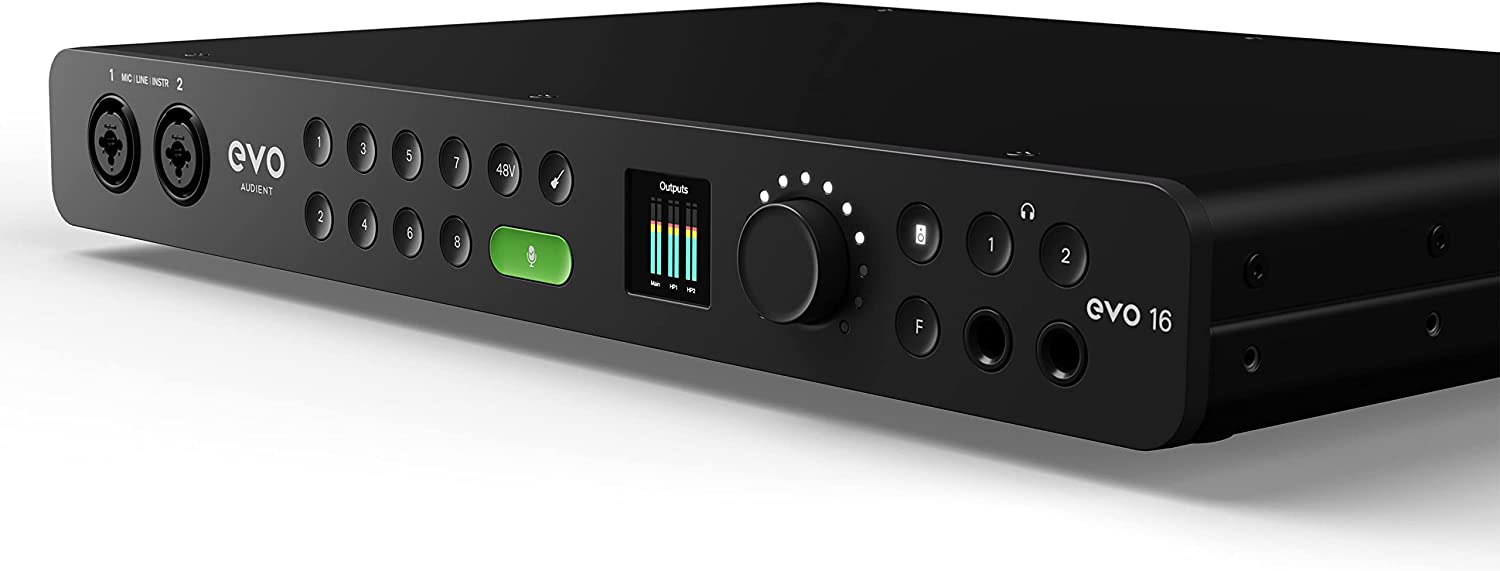

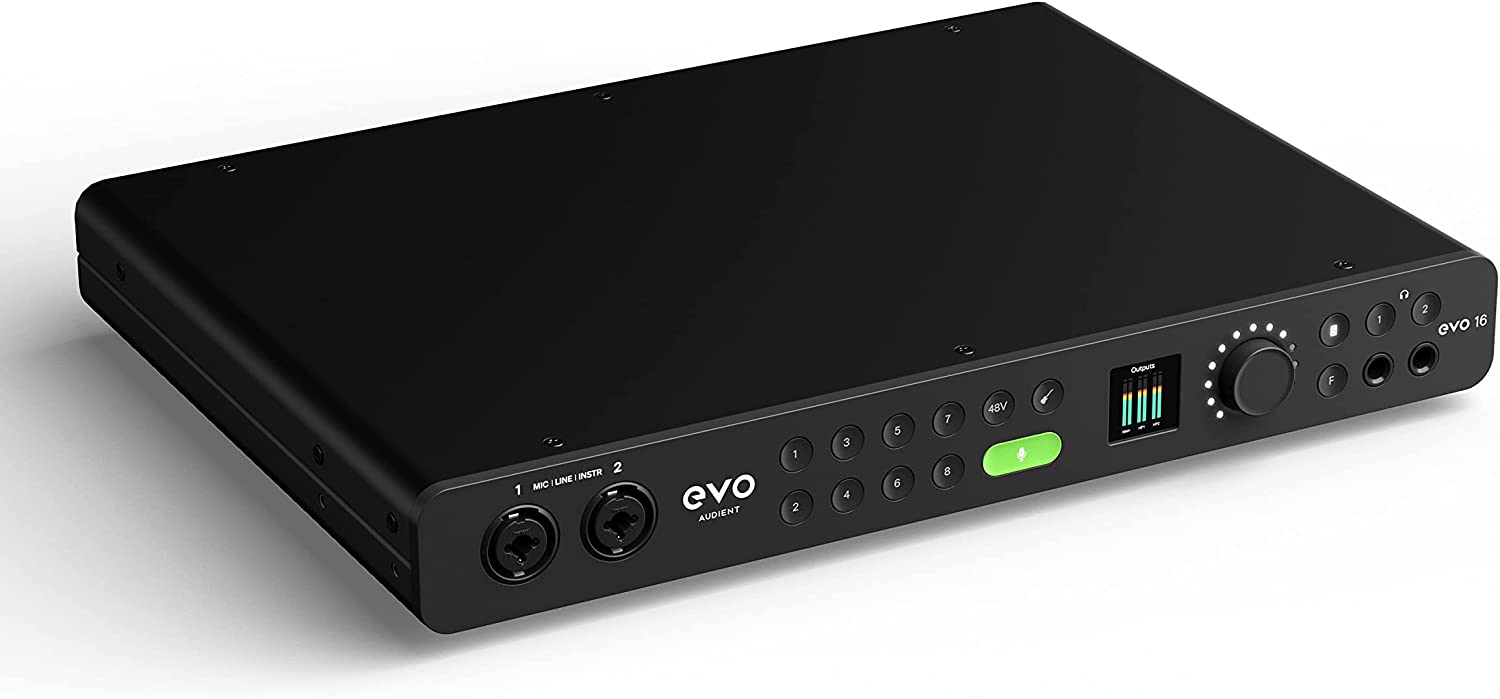

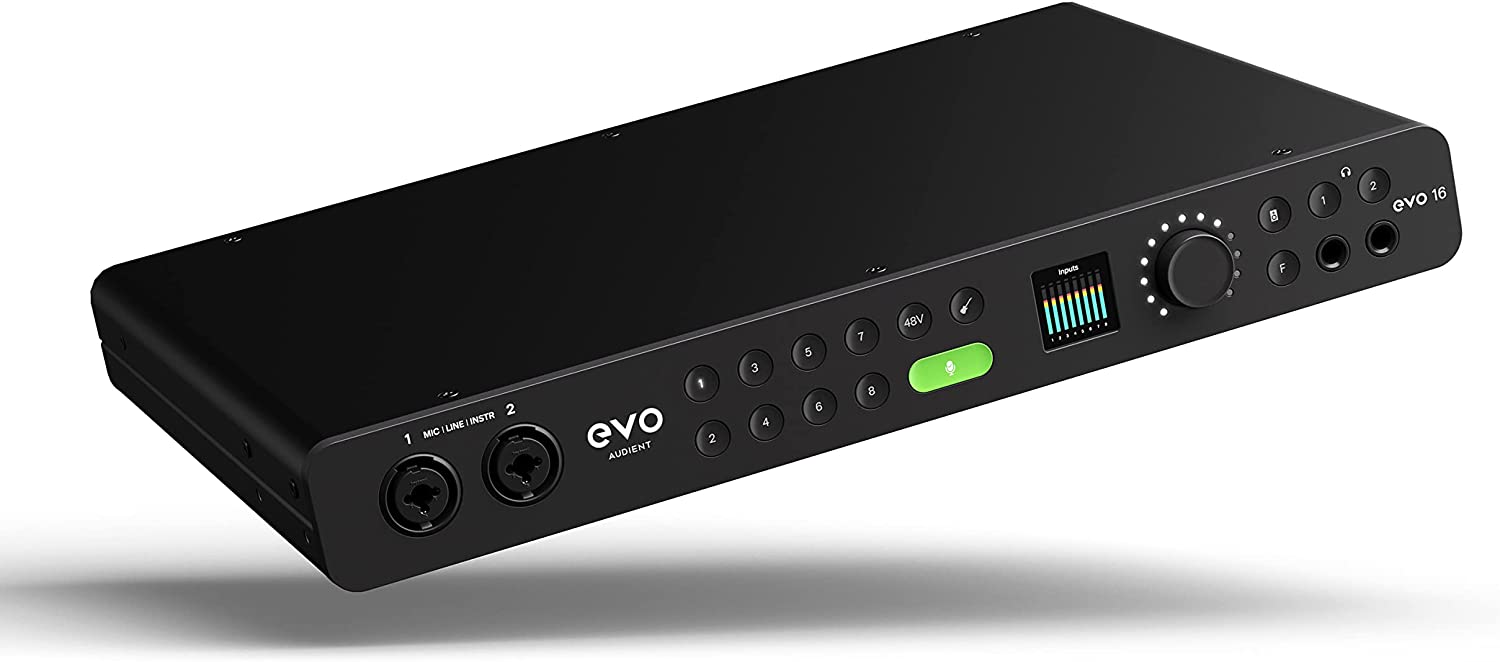

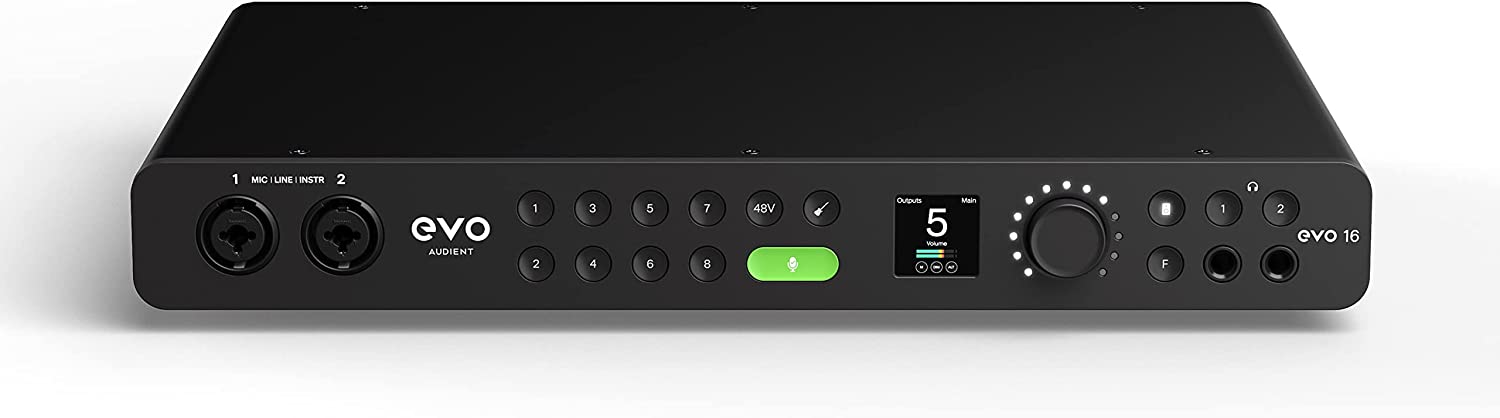

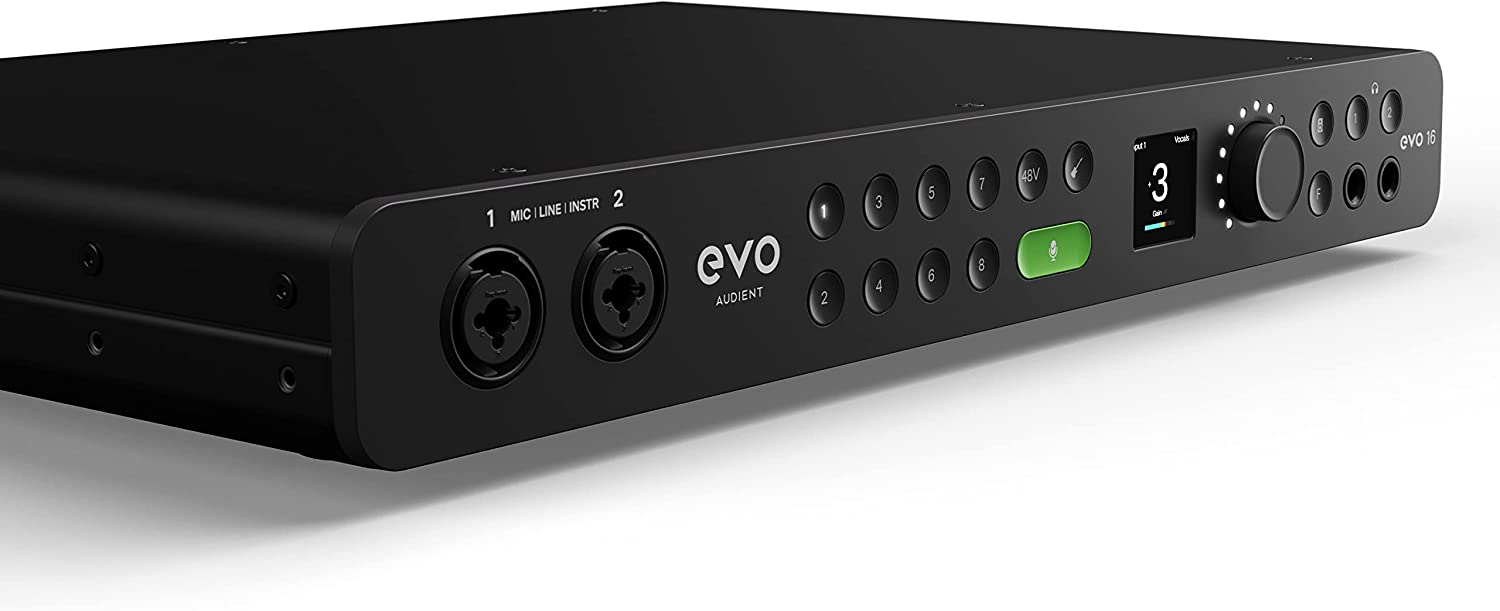

AUDIENT EVO 16 USB AUDIO INTERFACE

New as of 2022, the EVO 16 presents an innovative solution for Smaart users looking for a rackmount-able 8 XLR preamp interface. The EVO 16 is about the same size as a 15" MacBook, 1 RU high, and includes a complimentary rack mounting kit.

The device features 10 total inputs; 8 XLR/TRS combo inputs and 2, easy to configure, internal loopback inputs. There is no need for an external loop back cable for referencing Smaarts signal generator.

The EVO 16 is a great choice for Smaart users who wish to perform spectrum and transfer function live averages, deploying up to 8 measurement microphones, with the added benefit of not needing to physically control the device - all relevant setting parameters can be accessed via the EVO control application.

Features:

  • 8 XLR/TRS combo jacks

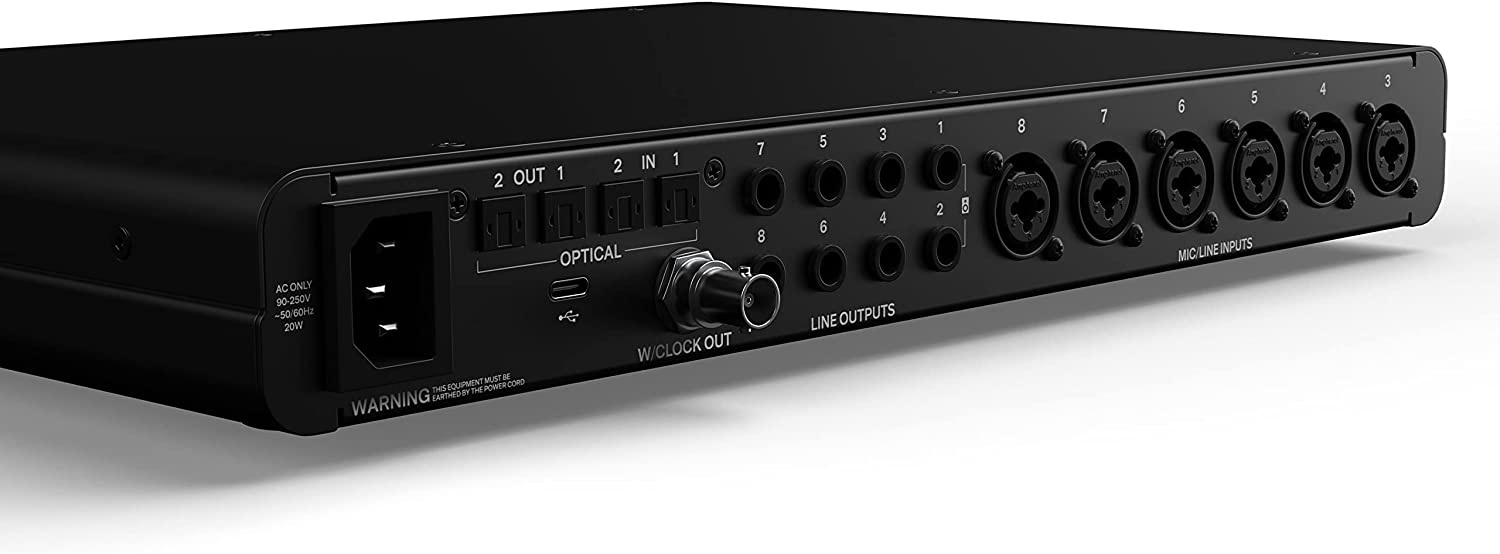

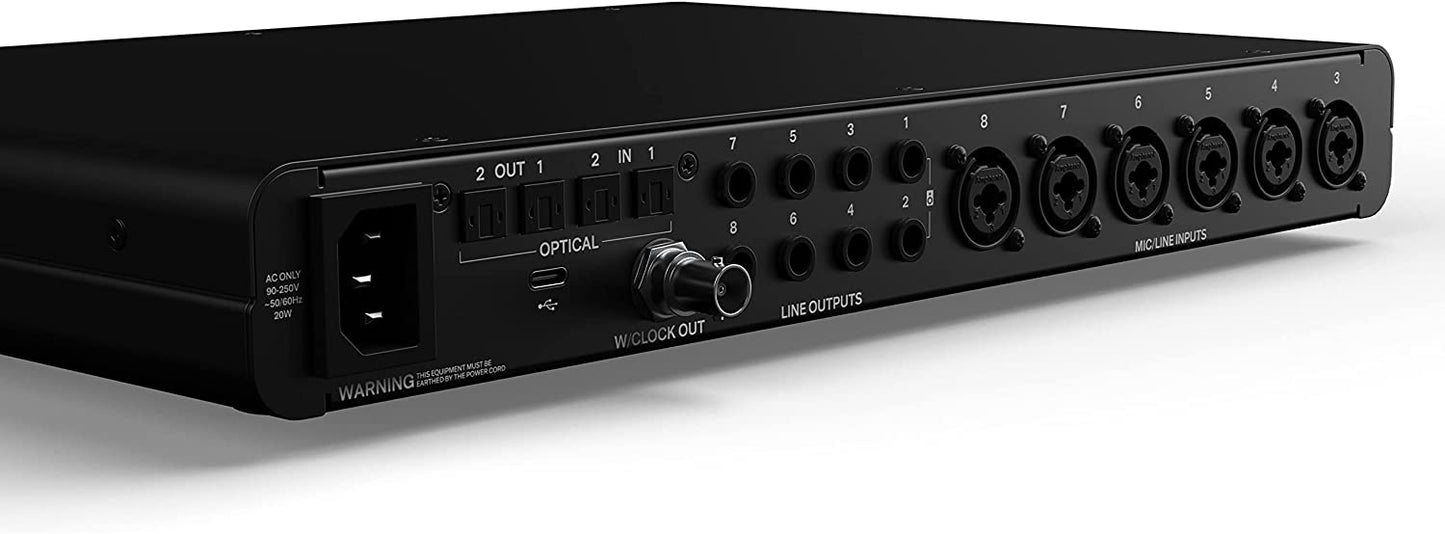

  • 8 rear line outputs
  • Optical IO
  • Word Clock Out
  • 2 front headphone outputs
  • Internal loopback
  • Software Controllable
  • 44.1kHz, 48kHz, 88.2kHz, 96kHz sample rate support
  • Built-In Power Supply
  • Rugged Metal Enclosure

8 XLR/TRS Combination Inputs:

  • Max. Input Level (XLR): 16dBu, 58dB of gain range
  • Max. Input Level (TRS): 10dBu, 58dB of gain range with -10dB pad

Dimensions:

  • LxWxH: 16.1 x 14.5 x 3.5 Inches (approx. 41 x 37 x 9 centimeters)
  • Weight: 8.73 pounds

System Requirements Windows:

  • Windows 7+
  • PC or Laptop manufactured after January 2006
  • Intel Core 2 @1.6Ghz, or AMD equivalent
  • 1GB RAM minimum

System Requirements MacOS:

  • OSX: 10.7 (Lion) or later
  • Intel CPU
  • 1 GB RAM minimum

For complete product specifications, please visit the manufacturer website HERE
